Lilla Lidingöbron
With its increased span and enhanced accessibility for pedestrians, cyclists, and moped riders, the 750-meter-long Lilla Lidingöbron is one of Sweden's longest rail bridges. As travel between Stockholm and Lidingö municipalities is expected to rise, the new bridge provides improved accessibility and safety, as well as increased frequency for tram traffic on the Lidingöbanan.
Client
Lidingö Stad
Location
Stockholm
Time frame
2018 - 2023
Scope
750 m Bridge
Project type
Construction, Road, Bridge
Contract
Design and Build Contract
Roll
Chief Surveyor for Main Contractor
Value
SEK 560 million
Roll
In this project, Nebojsa Cadjenovic served as surveying manager for Implenia Sweden AB, the project's main contractor.
The new bridge increase accessibility
The approximately 100-year-old Lidingöbron presented both risks and problems for bridge traffic. With significant renovation and maintenance needs, a new bridge was not only more economical and safer but also reduced the risk of traffic disruptions and increased accessibility for commuters, allowing more options for local transit, cycling, and walking.
Challenging groundworks

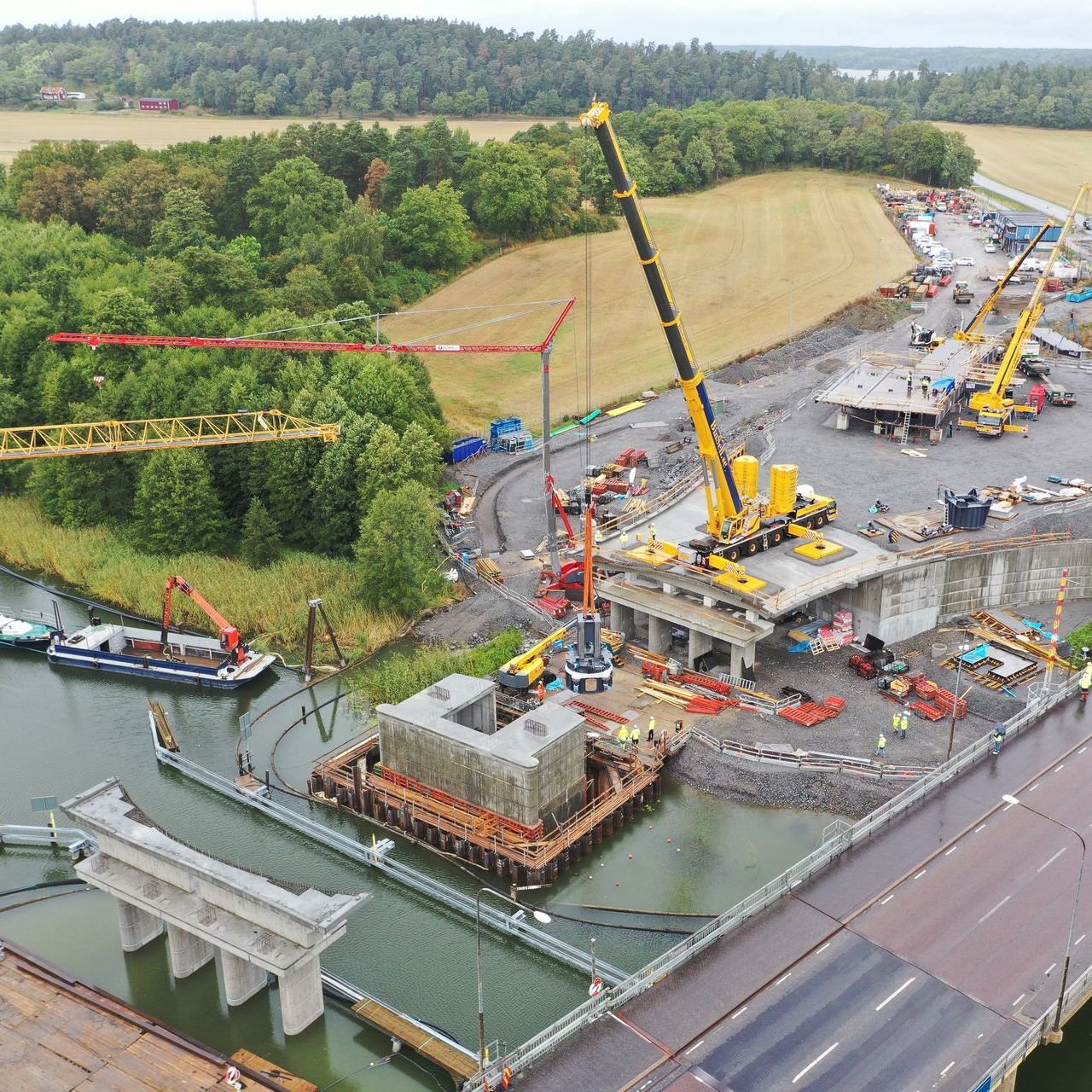

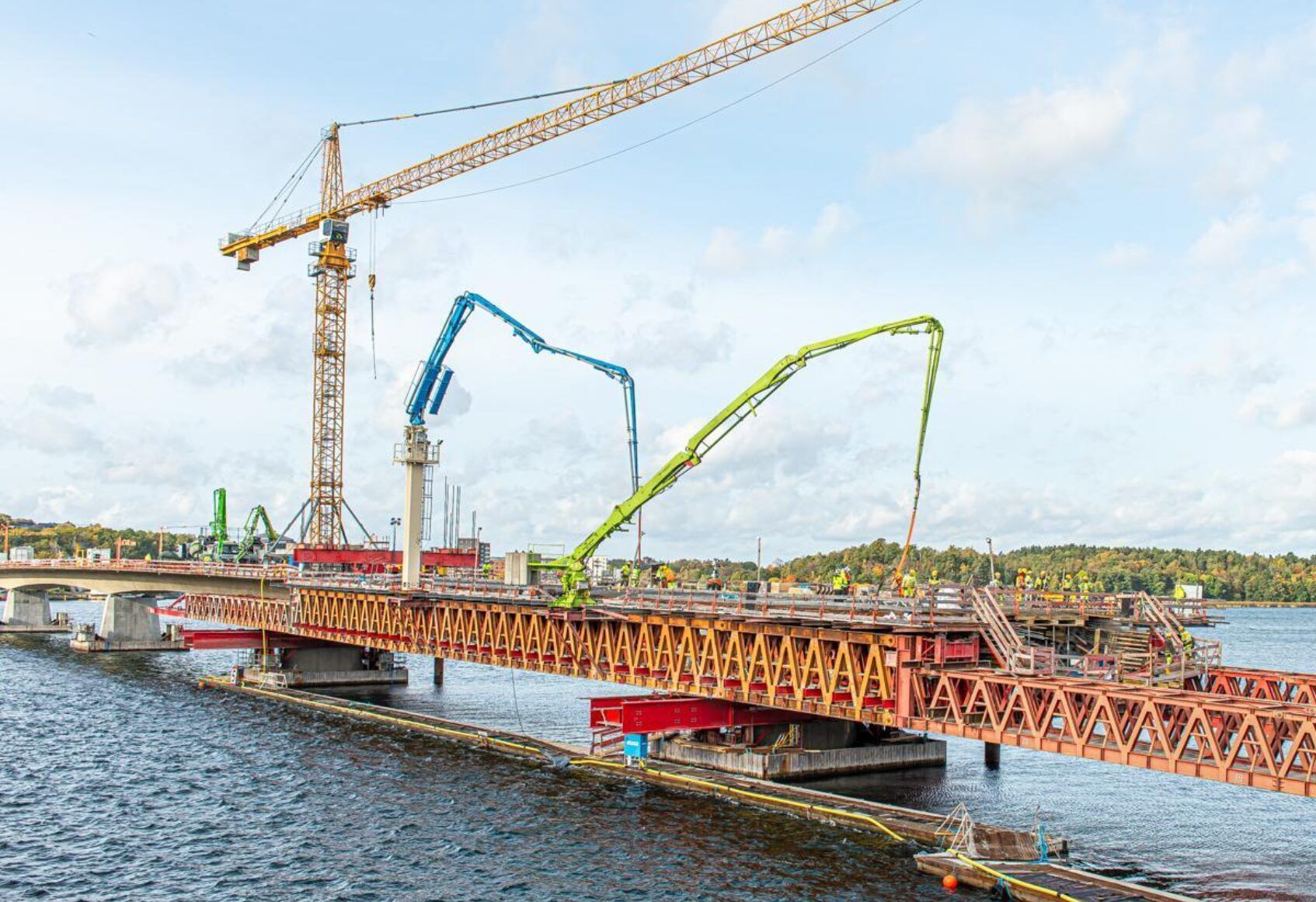

The new bridge is a 750-meter-long post-tensioned concrete bridge with 15 spans and 16 bridge piers, whose foundations are anchored in the water. This posed a technical challenge due to the complex foundation work required. The bridge was anchored into the bedrock using 198 steel piles, each 800 millimeters in diameter, driven down to a depth of 40 meters to reach the bedrock.
Surveying challenges
The bridge is a total of 16 meters wide, with 7.4 meters allocated for pedestrians, cyclists, and moped users, and 8 meters for tram traffic. The bridge is low with a sail-free height of 5.5 and 7 meters, and wider to meet the increasing demand for public transportation and sustainable travel. On the Lidingö side, the bridge splits into two branches, seamlessly integrating with the existing road bridge. This required significant effort, including high-quality measurements and modeling, to ensure proper alignment and functionality.
Do you want to know more?
Construction management
Explore similar projects
Agicon was born out of a need to realize the full potential of geodesy in the construction industry. Today, we deliver comprehensive solutions in surveying and construction management, tailored to your needs.
Agicon has been entrusted with leading an exciting new railway project in Gerstaberg – a central part of the new high-speed railway, Ostlänken.

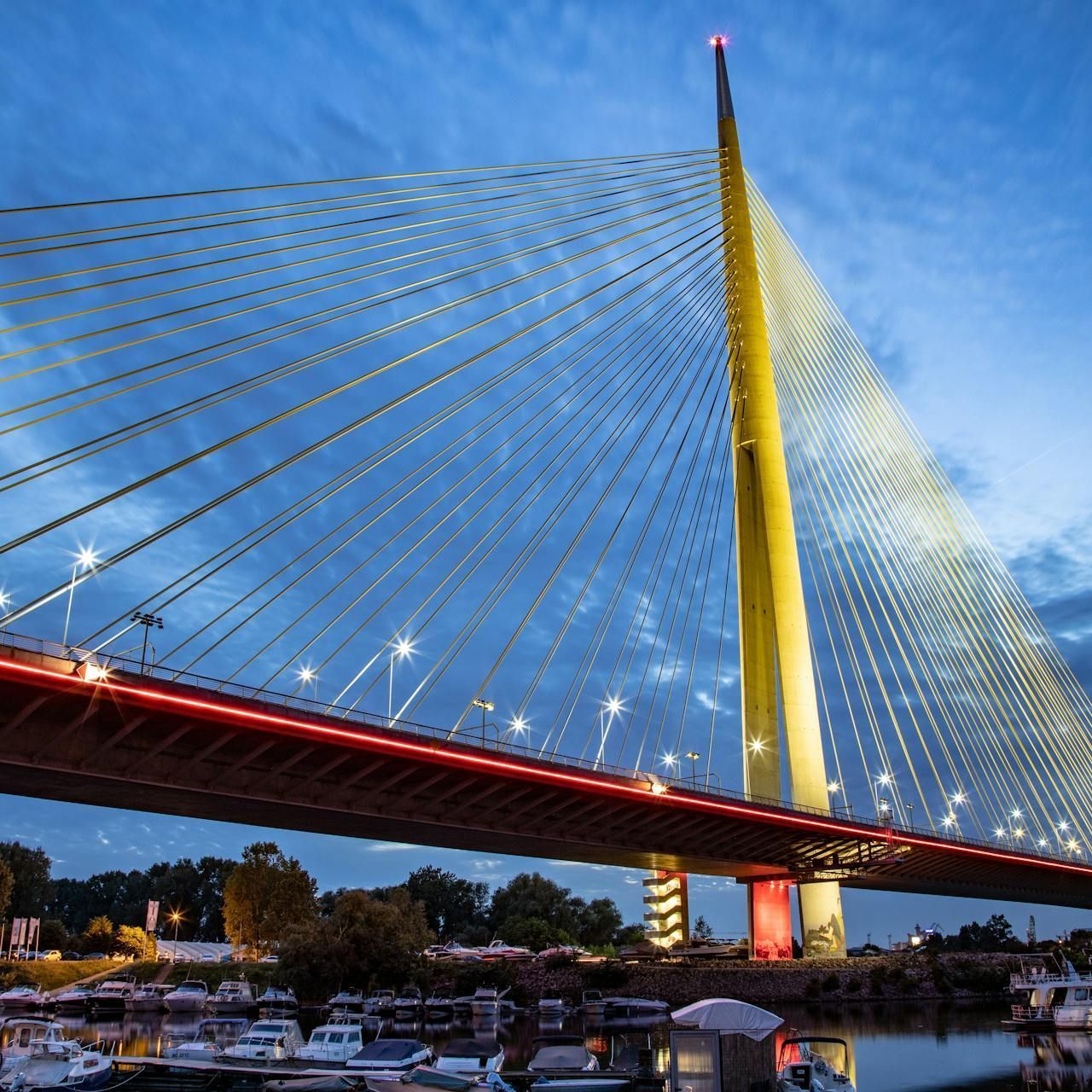

The 965 meter long cable-stayed bridge has won several awards for its advanced engineering. Today, it has become a landmark for Belgrade.
